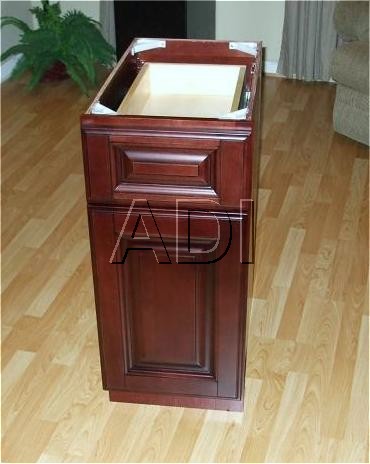

Standard 15" Base



Cabinets arrive in a RTA "FLATPACK"

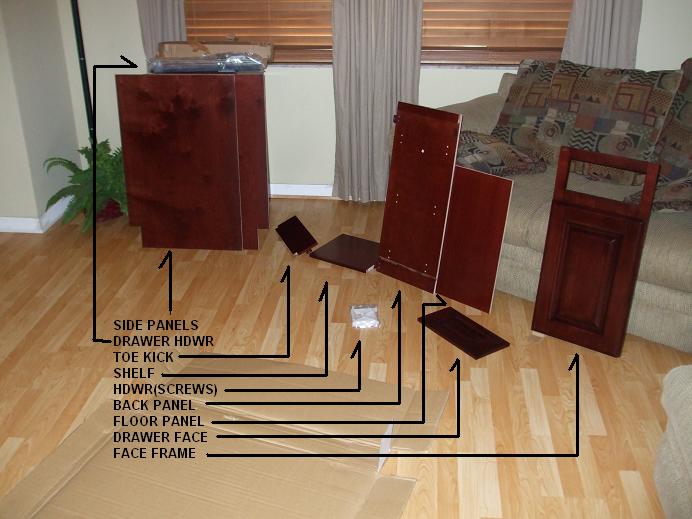

You should ID all the parts before starting

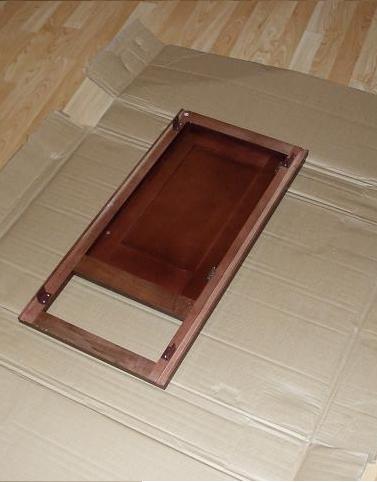

Face frame goes face down on soft surface (to protect from scratches)

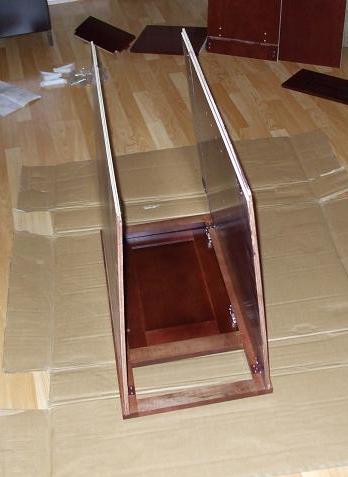

Side panels snap into face frame

insert locking screw into all metal "L" brackets after they have been snapped into place.

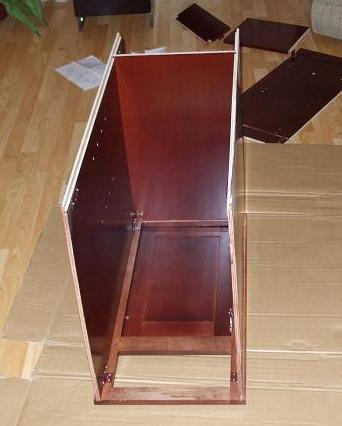

slide floor panel into side panel grooves

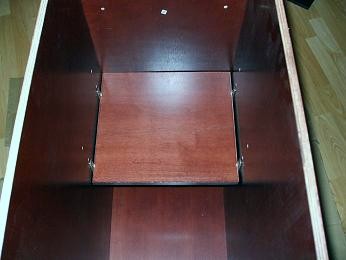

snap in  and lock back panel

set shelf clips and shelf

attach drawer head to drawer box ... use the predrilled holes



insert and screw in the drawer guide back brackets (pre drilled holes in back panel)

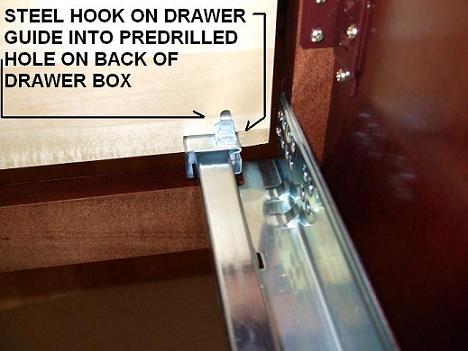

slide drawer guide into back bracket

use beveled head screws to attach front of drawer guide to face frame (see pre drilled holes)

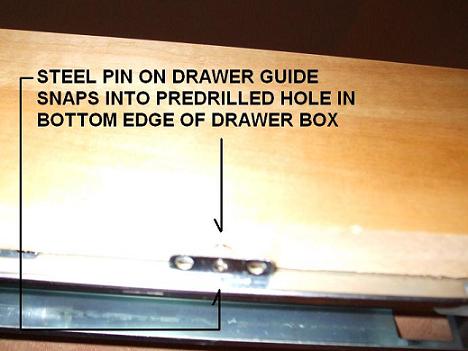

note how drawer box attaches to drawer guides

screw on counter top brackets

attach quiet pads

Doors are pre hung on face frames - Elite drawer box shipped separately (preassembled) - base cabinets should take about 15 minutes to assemble, wall cabinets go a little quicker.
